Enhancing solar self-consumption using Solar-Router-for-ESPHome and Solar-Optimiser¶
1 – Credits¶
2 – Objective: Build a Hybrid Control System for the Solar Router¶
By design, a solar router starts a load in order to converge toward zero grid injection by dynamically modulating its power. In installations with batteries or other active loads, there is no priority management: the solar router is always the last device to be supplied and only consumes surplus energy.
When the solar router is used to power a domestic hot water tank (DHW), low-sunlight days may result in insufficient routed energy to properly heat the water. In such cases, energy may need to be supplemented at night during off-peak hours.
In battery-based systems, this is counterproductive because double energy conversion (PV → Battery → Grid) introduces losses and reduces overall system efficiency.
The ideal solution is to:
- Operate the solar router in manual mode via Home Assistant when you want to prioritize the router over battery charging.
- Switch it to automatic mode when the battery is sufficiently charged and you want to increase routing responsiveness.
Several algorithmic approaches are possible. This document details the solution I use: Solar Optimizer (SO) by Jean-Marc COLLIN
3 – Overview of Solar Optimizer (SO)¶
Solar Optimizer is a Home Assistant integration that acts as an energy orchestration engine for managed devices.
Its objective is not to reach zero grid injection, but rather to compute the most cost-effective energy strategy.
SO can manage multiple devices simultaneously. At each configurable iteration interval, it computes the optimal solution using:
- Grid exchange power sensor
- Electricity purchase cost
- Electricity resale price
- Battery charge/discharge power (if present)
- Battery state of charge (if present)
4 – Requirements to Use the Solar Router with SO¶
ON/OFF Control¶
The Solar Router does not provide a native ON/OFF switch (only AUTO/MANUAL). SO requires an ON/OFF entity.
Create a template switch using an input_boolean as described in Chapter 6.
Power Control¶
Two Options:
- Directly control the Solar Router
router_level - Use a number proxy This method allows reshaping the control setpoint through a correction table to compensate for load non-linearity (recommended) as described in Chapter 7.
5 – Configuring the Solar Router in SO¶
Refer to the official SO documentation if needed: https://github.com/jmcollin78/solar_optimizer/blob/main/README-fr.md#configurer-un-%C3%A9quipement-avec-une-puissance-variable

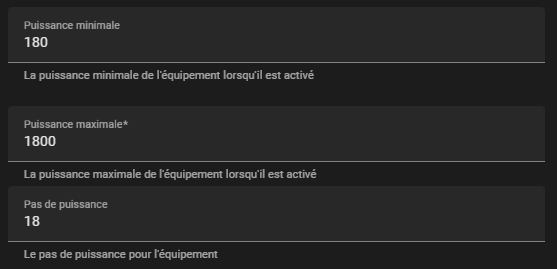

Power Step Configuration¶
Example: 1800 W water heater (1% resolution, 10% minimum step)

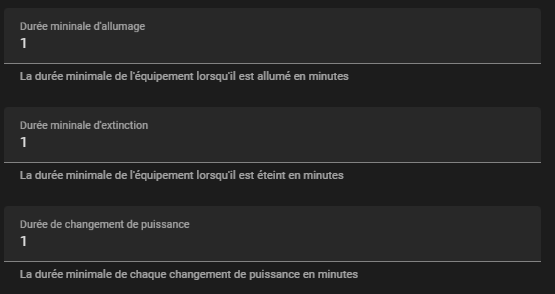

Timing Parameters¶
For a highly reactive configuration and a resistive load tolerant to frequent switching, the following parameters are used:

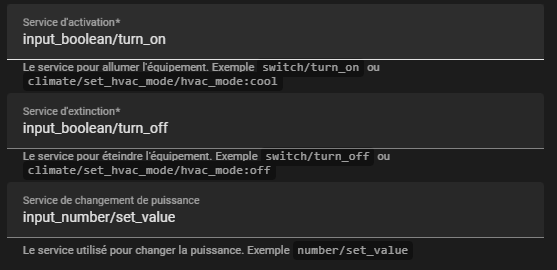

Action Services¶
Define:
- ON service
- OFF service
- Power level change service

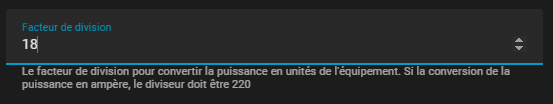

Division Factor¶
Used by SO to convert real power (0–1800 W) into routing level (0–100%).
Optional¶
- Minimum and maximum daily runtime
- Off-peak hours configuration
(Personally not used — night charging decisions are based on stored daily energy via automation.)
6 – ON/OFF Template Switch (input_boolean)¶
Since the Solar Router only supports AUTO/MANUAL, an ON/OFF abstraction must be created.
- When switching OFF → Set
router_levelto0(This emulates a true OFF behavior) - When switching ON → No action required (SO assigns the power)
Example Automation¶
alias: Water heater OFF management
description: ""
triggers:
- trigger: state
entity_id:
- input_boolean.on_off_cumulus
from:
- "on"
conditions: []
actions:
- action: input_number.set_value
target:
entity_id: input_number.router_level_desired
data:
value: 0
mode: single
metadata: {}
7 – Operating Point Proxy (Non-Linear Compensation)¶
Architecture¶
SO writes an integer between 0 and 100 into:
This represents the desired theoretical power percentage.
number.router_level_adapted is a template number applying correction through interpolation.
Template Configuration¶
{% set input_value = states('input_number.router_level_desired') | float %}
{% set points = [
[0, 0],
[11, 0.3],
[15, 0.6],
[20, 1.1],
[23, 1.5],
[25, 1.9],
[33, 3.9],
[38, 5.6],
[45, 9.2],
[56, 18.9],
[61, 25],
[68, 36.1],
[72, 42.8],
[80, 56.1],
[93, 96.7],
[100, 100]
] %}
{% set interval = points | selectattr("1", "le", input_value) | list %}
{% set prev_point = interval[-1] %}
{% if points.index(prev_point) < (points|length - 1) %}
{% set next_point = points[points.index(prev_point) + 1] %}
{% else %}
{% set next_point = prev_point %}
{% endif %}
{% set x1, y1 = prev_point[1], prev_point[0] %}
{% set x2, y2 = next_point[1], next_point[0] %}
{% if x2 != x1 %}
{% set adapted_value = y1 + (input_value - x1) * (y2 - y1) / (x2 - x1) %}
{% else %}
{% set adapted_value = y1 %}
{% endif %}
{{ adapted_value | round(1) }}
Explanations :
- Updated each time
router_level_desiredchanges. - The
pointstable acts as a mapping mechanism to match the requested percentage to the correct router setpoint, ensuring the operating point is as close as possible to the theoretical equivalent. It can be easily derived by measuring the actual load power at different router_level percentage setpoints. - The algorithm simply performs linear interpolation to determine the optimal value.
- The final step is to update the router_level of the Solar Router (SR).
Automation to update router_level with the calculated value¶
alias: Update solar router level + ON/OFF management
description: ""
triggers:
- trigger: state
entity_id:
- number.router_level_adapted
conditions: []
actions:
- action: number.set_value
data:
value: "{{ states('number.router_level_adapted') | float(0) }}"
target:
entity_id: number.solarrouter_router_level
- if:
- condition: numeric_state
entity_id: number.router_level_adapted
above: 0
then:
- action: input_boolean.turn_on
target:
entity_id: input_boolean.on_off_cumulus
else:
- action: input_boolean.turn_off
target:
entity_id: input_boolean.on_off_cumulus
mode: single
Logic Summary
On each router_level_adapted update:
- Update Solar Router
router_level - If value = 0 → switch OFF
- If value > 0 → switch ON
8 – Hybrid Mode Management (AUTO / MANUAL)¶
An automation dynamically switches:
- Solar Router AUTO/MANUAL mode
- Solar Optimizer device management
based on battery state of charge.
Logic Used¶
- Battery > 79% → Solar Router in AUTO mode
- Battery < 80% → Solar Router in MANUAL mode with SO control
Example Automation¶
alias: Switch solar router mode based on battery threshold
description: ""
triggers:
- trigger: numeric_state
entity_id:
- sensor.solarman_battery
above: 79
- trigger: numeric_state
entity_id:
- sensor.solarman_battery
below: 80
conditions: []
actions:
- if:
- condition: numeric_state
entity_id: sensor.solarman_battery
above: 79
then:
- action: switch.turn_off
target:
entity_id: switch.enable_solar_optimizer_cumulus
- action: switch.turn_on
target:
entity_id: switch.solarrouter_activate_solar_routing
- action: input_boolean.turn_off
target:
entity_id: input_boolean.on_off_cumulus
else:
- action: switch.turn_off
target:
entity_id: switch.solarrouter_activate_solar_routing
- action: switch.turn_on
target:
entity_id: switch.enable_solar_optimizer_cumulus
mode: single
9 – Conclusion¶
This implementation reflects my personal approach. Adjustments may be required depending on your installation.
However, it provides a solid technical foundation for designing hybrid solar routing strategies.
In my case, it fully meets the original objective: prioritizing water heater usage over battery charge when appropriate.
10 – Appendix¶

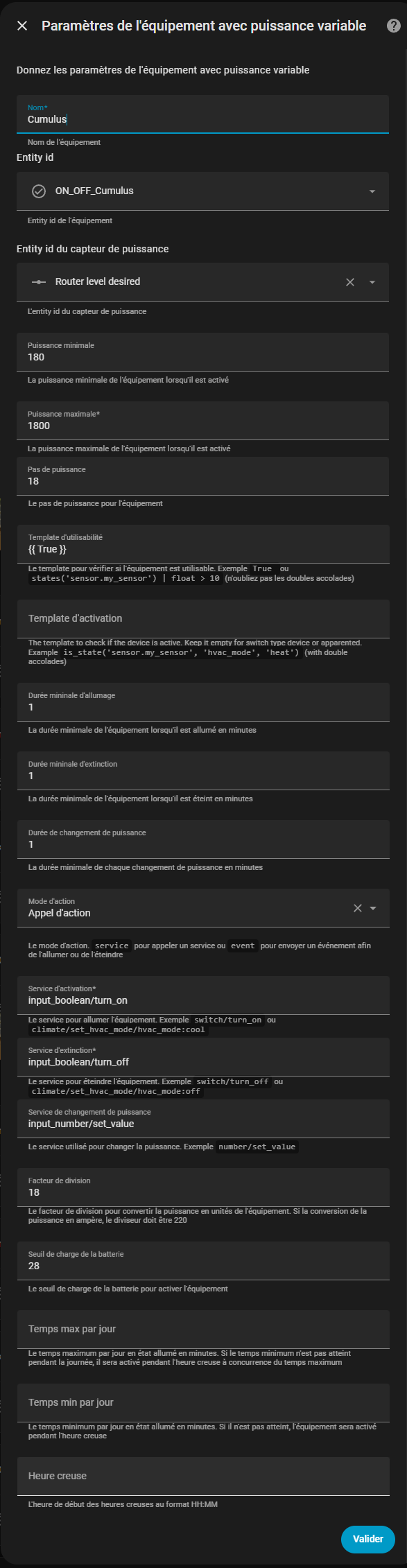

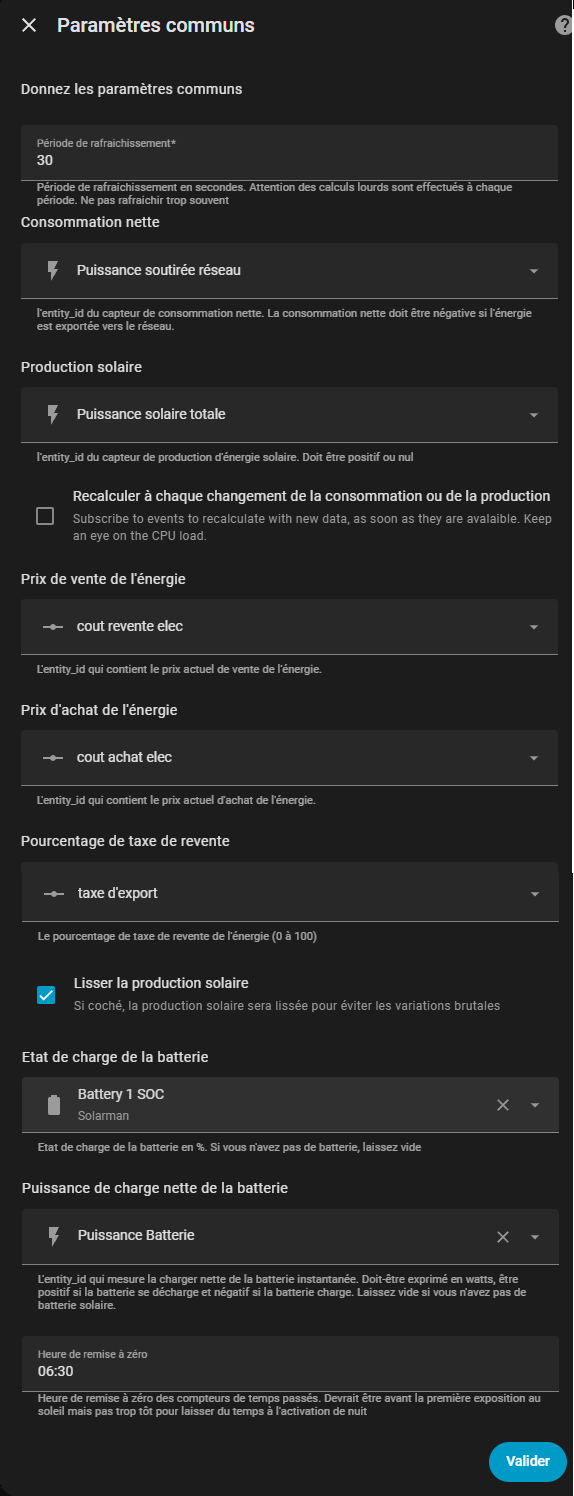

General SO settings and water heater device configuration:
