Mechanical Relay Regulator¶

Description¶

This regulator performs an All or Nothing Regulation.

A relay is able to let current pass to the load or not. This is the simplest form of regulation: the load is either fully powered or completely off.

Be careful during wiring and use the Normally Open (NO) pin.

This kind of relay can only be used with Engine 1 x switch or Engine 1 x dimmer + 1 x bypass

Diagram¶

All or nothing regulation

Hardware¶

This regulator works with standard mechanical relays.

Wiring Diagram¶

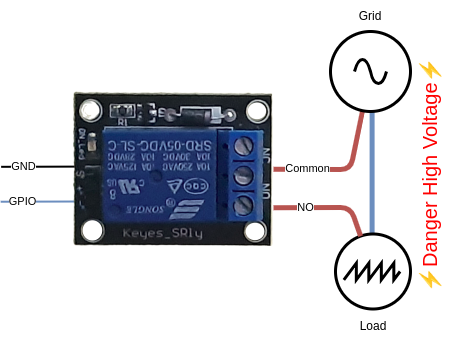

The following schematic shows the wiring of the relay:

Mechanical relay wiring

Configuration¶

To use this package, add the following lines to your configuration file:

1
2
3
4
5
6
7
packages:
  regulator:
    url: https://github.com/hacf-fr/Solar-Router-for-ESPHome/
    files:
      - path: solar_router/regulator_mechanical_relay.yaml
        vars:
          relay_regulator_gate_pin: GPIO22

Variables¶

Variable Required Default Description
relay_regulator_gate_pin yes — GPIO pin connected to the gate of the relay.
