Solid State Relay Regulator¶

Description¶

This regulator performs a Burst Fire Regulation.

A relay is able to let current pass to the load or not. By sending small parts of current (blinking), it is possible to divert a well-defined amount of energy to the load.

Tip: This regulator can also be used with a triac

Diagram¶

Burst fire regulation

How does this regulator work?

This regulator sends a PWM (Pulse Width Modulation) signal to the relay. The period of the PWM is 330ms. The duty cycle determines the amount of energy transferred.
If you want to know more about how a PWM can regulate the transmitted energy, you can refer to Wikipedia.

Duty cycle examples
Duty Cycle examples (Source: Wikipedia)

Hardware¶

Solid State Relay

Warning

It is recommended to attach the relay to a heat sink.

Wiring Diagram¶

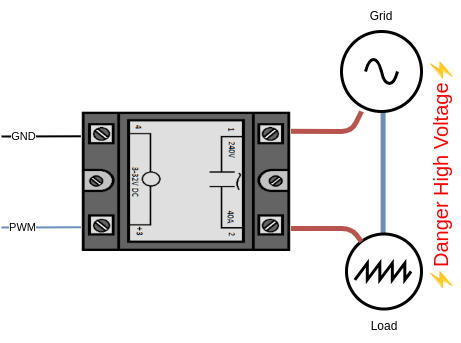

The following schematic shows the wiring of the relay:

Solid state relay wiring

Configuration¶

To use this package, add the following lines to your configuration file:

1
2
3
4
5
6
7
packages:
  regulator:
    url: https://github.com/hacf-fr/Solar-Router-for-ESPHome/
    files:
      - path: solar_router/regulator_solid_state_relay.yaml
        vars:
          regulator_gate_pin: GPIO22

Variables¶

Variable Required Default Description
regulator_gate_pin yes — GPIO pin connected to the gate of the relay.
